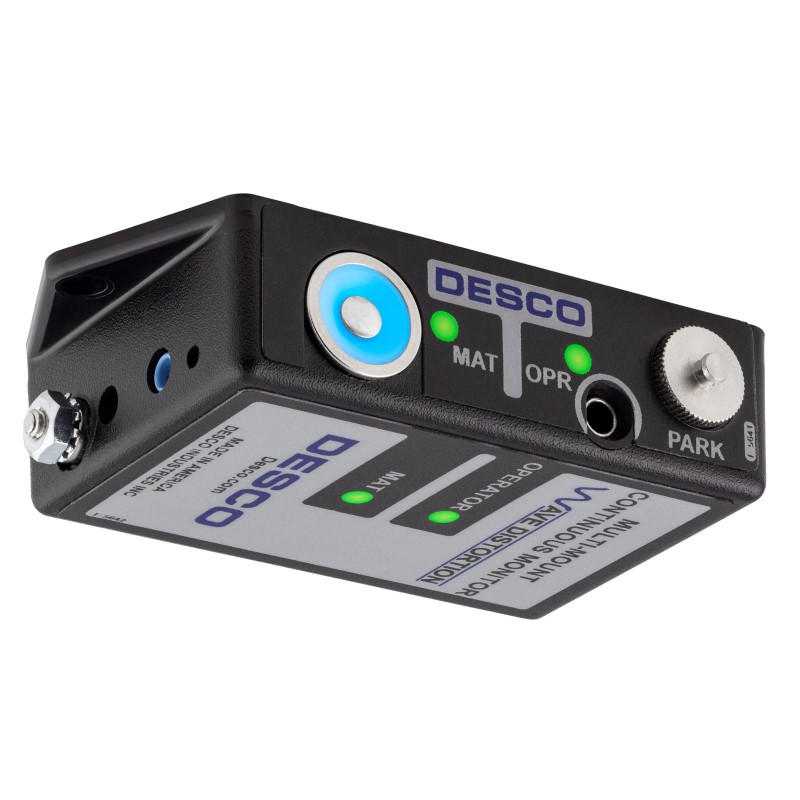

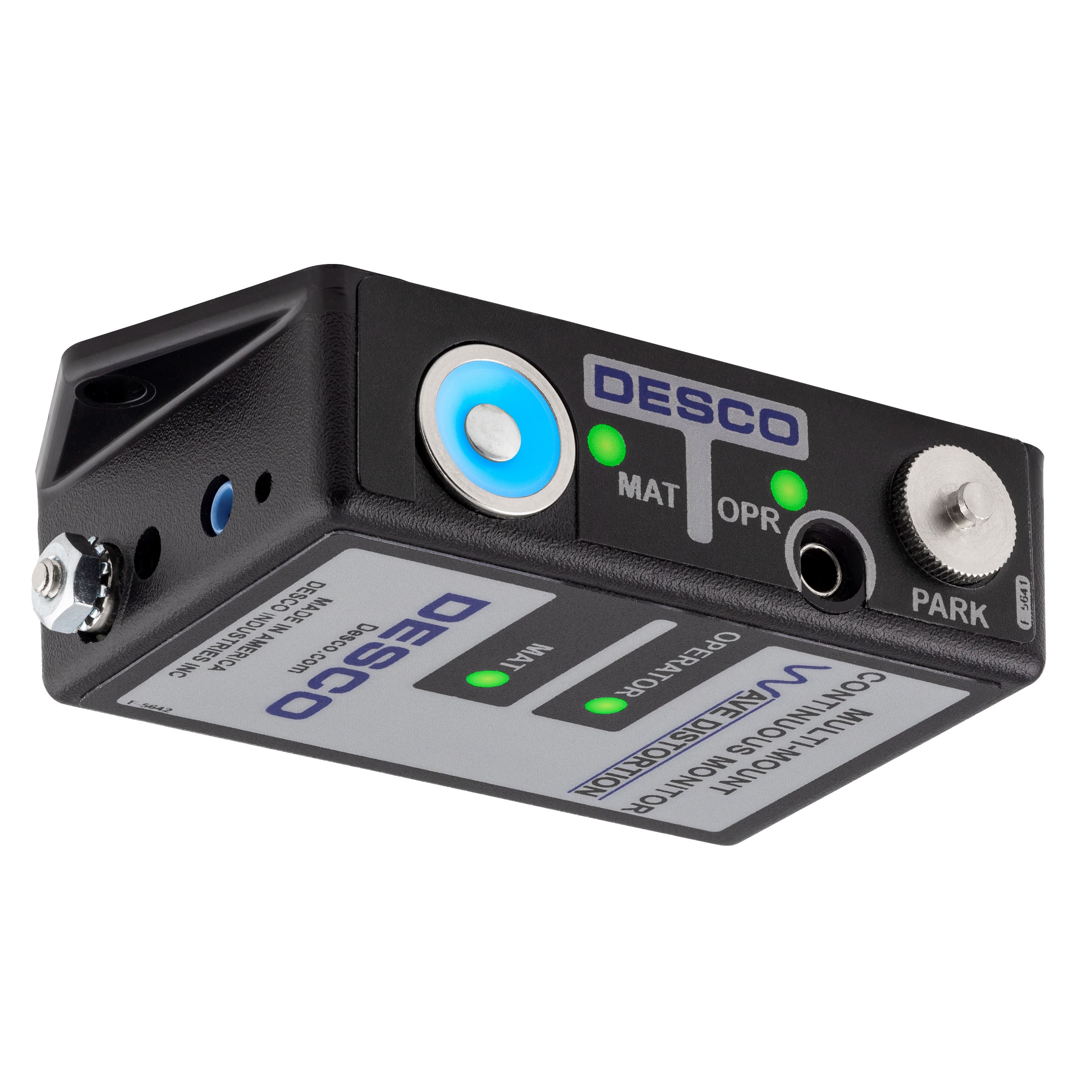

MULTI-MOUNT MONITOR, WITH NORTH AMERICA POWER ADAPTER

• Single Workstation Continuous Monitor
  Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
• NEW Park Delay Timer and ParkSnap
  Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
• NEW Light Tower Jack
  Connects with the 19332 Light Tower accessory
• Wave Distortion Technology
  Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist straps path-to-ground* and the presence of its 1 megohm safety resistor
• Mat Monitor Switch
  Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
• Audible Alarm Adjustment
  Sets the audible alarm volume from loud to louder
• Enclosure with Mounting Tabs
  Installs in workbench and equipment environments
• Single-Wire Impedance Design
  Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
• 1.2 Volt Operator Test Voltage
  Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
• <50 Millisecond Alarm Response Time
  Identifies failures and intermittencies
• Calibration Verification
  Use the Desco98221Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
• NIST Calibrated Original Calibration Certificate can be DownloadedHere
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, seeCalibration.
• 100-240VAC Safety Certified Power Adapter with North American Plug
  Works with standard electrical systems in North America, Japan, and Asia
• Made in the United States of America
  This item is made and stocked inChino, CA

*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 10⁶ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
