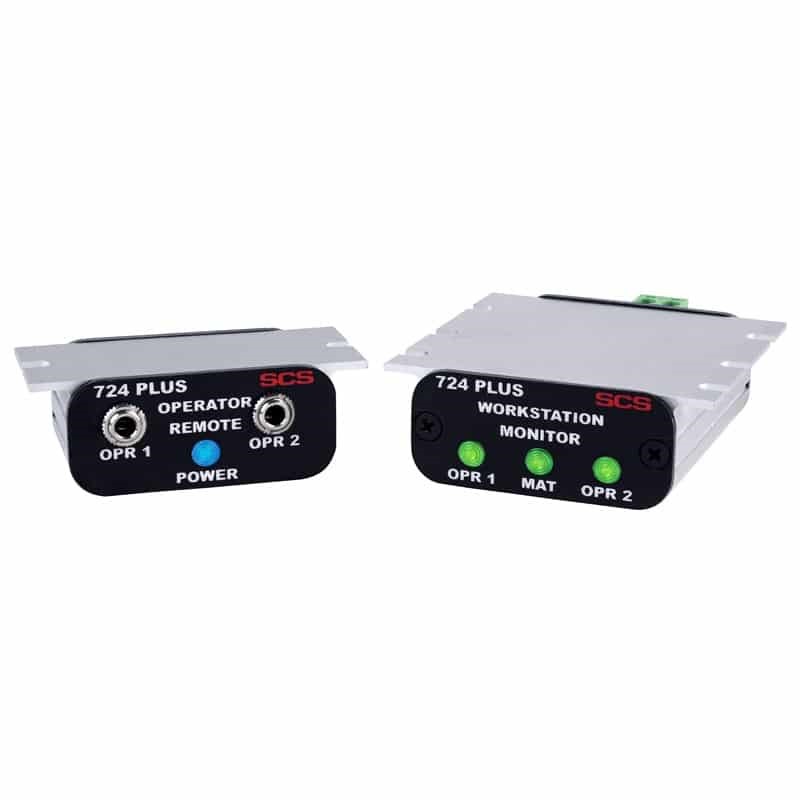

724 PLUS WORKSTATION MONITOR

• Single Workstation Continuous Monitor
  Continuously monitors the path-to-ground integrity of two operators and one conductive or dissipative worksurface; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
• Digital Signal Processing Technology
  Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground and the presence of its 1 megohm safety resistor
• Operator Body Voltage Detection
  Alarms if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item
• 0.40 Volt Operator Test Voltage
  Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
• 500 Millisecond Alarm Response Time
  Identifies failures and intermittencies that inferior technologies miss
• Operator Remote Disconnect Alarm
  Prevents tampering should one intentionally disconnect the operator remote from the monitor
• Miniature Monitor Size (0.85 x 2.4 x 2.6 inches)
  Occupies minimal space and includes mounting tabs secure installations
• Dedicated Monitor Ground Cord
  Allows the monitor to be bonded to a reliable ESD ground, AC equipment ground, or auxilary ground
• Use with Dual-Wire Wrist Straps
  See SCS dual-wire wrist straps
• Calibration Verification
  Use the SCS 770734 Verification Tester to check the test limits of 724 Plus Workstation Monitors without removing them from their workstations
• NIST Calibrated with Certificate Included
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
• 100-240VAC Power Adapter with Interchangeable Plugs
  Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe
• Made in the United States of America
  This item is made and stocked in Chino, CA

U.S. Patents 6,930,612; 9,983,251
